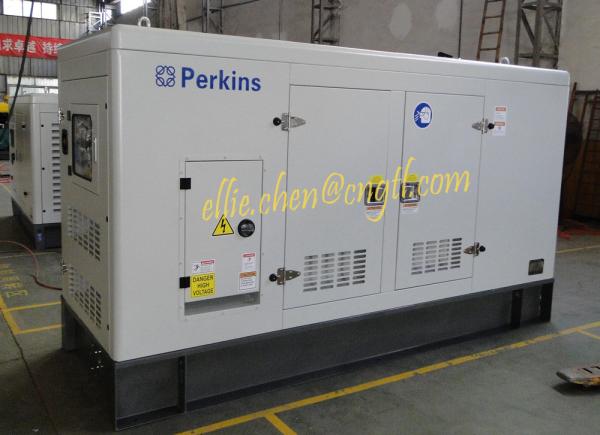

100kva Perkins Stationary power diesel generator, three phase electric generators

The overall performance and reliability characteristics makes this one of the prime choices for today’s power generation industry.

* Stationary generator: Individual 4 valve per cylinder give optimised gas flows, while unit fuel injectors ensure ultra fine fuel atomisation and hence controlled rapid combustion for efficiency and economy

* Reliable power generator set: All engines are tolerant of a wide range of temperatures without derate

* Efficient electric generating set: Designed to provide excellent service access for ease of maintenance

* Clean power generating set: Low gaseous emissions for cleaner operation

General Data

Prime power (kva/kw): 100/80

Standby power(kva/kw): 110/88

Voltage/Frquency/Phase: 400V/50Hz/3 phase

Engine Data

Brand: UK Perkins

Model: 1006TG2A

Number of Cylinders: 6

Bore x Stroke: 100x127

Rated RPM: 1500

Base output power (KW): 102

Displacement (L): 5.99

Compression ratio: 16.0:1

Combustion system: Direct injection

Induction system: Turbocharged

Economic consumption Generator (L/h)

Standby power: 27.1

100% prime power: 24.3

75% prime power: 17.9

50% prime power: 12.3

Alternator Data

Brand: Stamford, Leroy Somer, Marathon or MeccAlte

Voltage: 400V

Frequency: 50Hz

Number of phase: 3

Power factor(COS phi): 0.8

Voltage regulation: AVR

Altitude (m): 1000

Ambient temperature (℃):

Insulation class: H

Bearing: Single

Coupling: Direct

Genset dimension

Open generator (mm): 2110*950*1400

Weight (kg): 1340

Container generator (mm): 3000*1380*1900

Weight (kg): 1890
