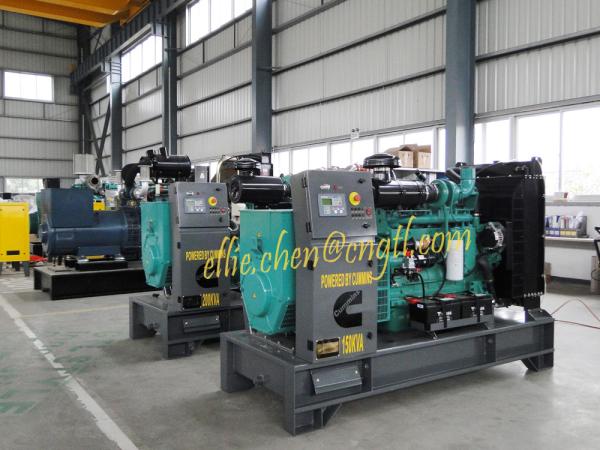

150kva Cummins standby generator, 6CTA8.3-G2
* Low fuel consumption and cost-effective Cummins standy generator
set
* Durable Generator tank: 8 hours or 12 hour or optional
* Low maintenance generator set, low noise generator
* Diesel Gensets Standard chargers: Float battery charger and
battery charger
* Generator diesel warranty: World warranty service
* Primary power supply generator, emergency power generator or
rental generator
* Electricity equipment of mobile power station, standby generators
Optional Supply
* Weatherproof/Soundproof enclosure
* Mobile trailer
* Remote radiator cooling
* Engine/alternator heaters
* Auto start/Auto mains failure(AMF) / ATS control panel, circuit
breaker
* Auto load sharing & synchronizing panel
Generator set information
| Diesel Genset Features |
| MODEL | CCW-150T5 |
| Stand-by power@50Hz | 132KW/165KVA |
| Prime power@50Hz | 120KW/150KVA |
| Generator Ratings |
| Voltage | HZ | phase | P.F | Prime Amps | ESP(KW) | PRP (KW) |
| 400 | 50 | 3 | 0.8 | 217 | 132 | 120 |
Engine Data
| Manufacture | | Cummins |
| Model | | 6CTA8.3-G2 |
| Number of Cylinders | | 6 |
| Borexstroke | mm | 114X135 |
| Rated RPM | Rpm | 1500 |
| Base Output Power | KW | 163 |
| Displacement | L | 8.3 |
| Compression ratio | | 17.3:1 |
| Air intake way | | Turbo-charged & aftercooled |
| Governor method | | Electrical |
Low fuel consumption generator
| Standby power | L/h | 48 |
| 100% prime power | L/h | 42 |
| 75% prime power | L/h | 31 |
| 50% prime power | L/h | 21 |
Alternator Data
* Famour alternator Brand: Stamford, Leroy Somer, Marathon or
MeccAlte
* 4-pole, brushless, self exciting, self regulating
* Drip proof, IP23 protection, class H insulation
* Industrial standard, single bearing type
* Self ventilated, screen protected
* oltage regulation ±1% at any fixed load
Genset dimension
Open generator (mm): 2280*1150*1650
Weight (kg): 2000
Silent generator (mm): 3200*1100*2150
Weight (kg): 2500
